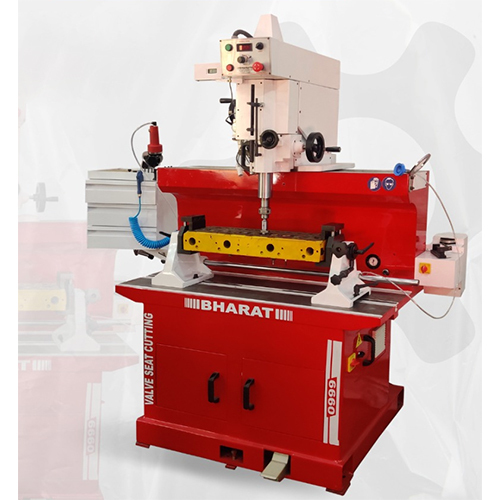

Head Seat Cutting

Head Seat Cutting
Head Seat Cutting
Send Inquiry
Product Code : DSCN4963
Brand Name : BAMT
Product Description

We are engaged in manufacturing, supplying and exporting excellent quality Head Seat Cutting. These are produced by us, using our state-of-the-art machineries under the able guidance of experienced professionals to meet international quality standards. Offered by us, this sophisticated machinery offers greater shelf life and considered to be energy efficient. We check these Head Seat Cutting by stringently to ensure its matches international quality standards.

Other info:

Head Seat Cutting

14 mm

14 mm

Maximum Seat Cutting Dia

  • 40 mm
  • 60 mm

Spindle Speed (Variable)

  • 25-200 rpm
  • 50-300 rpm

Spindle Head Travels(front and back)

  • 40 mm
  • 60 mm

Spindle Head Travels(left and right)

  • 700 mm
  • 850 mm

Clamping Block Travels(front and back)

  • 130 mm
  • 150 mm

Clamping Table Size

  • 500to1000 mm
  • 600to1100 mm

Electricals Requirements

  • 3 phase,5 amp,1 hp
  • 3 phase,5 amp,1 hp

Air Requirements

  • 100 psi 4 bar
  • 100 psi 6 bar

Spindle Motor

  • 0.75 kw/1 hp
  • 0.75 kw/1 hp

Floor Space Requirement

  • 1100 mmto800 mmto2000 mm
  • 1300 mmto1000 mmto2200mm

STANDARD ACCESSORIES

  • MV 2 & 3
  • MV 2 & 6

Air Gun Set

  • 1 no
  • 1 no

Allen key Set

  • 1 set
  • 1 set

Digital Centering System-Imported

  • 1 no
  • 1 no

Single Cylinder Clamping Plate

  • 1 no
  • nill

Guide Stem -Steel

  • 5 no
  • 10 no

Cutting Tool(45 degree)-Imported

2 no
2 no

Cutting Tool(30 degree)-Imported

  • nill
  • 1 no

Chamfering Tool(45 degree)-Imported

  • nill
  • 1 no

Phasing Tool (90 degree)-Imported

  • nill
  • 1 no

Ball Head(cutting holder)-Imported(.236)

  • 1 no
  • 1 no

Ball Head(cutting holder)-Imported(.375)

  • nill
  • 1 no

Tip Holder-Imported 14-25

  • 1 no
  • 1 no

Tip Holder-Imported 24-40

  • nill
  • 1 no

Tip Holder-Imported 40-60

  • nill
  • 1 no

Spanner 22-24

  • 1 no
  • 1 no

Tool Setting Fixture-Imported

  • 1 no
  • 1 no

Cutter Blade Removel Screw Driver-Imported

  • 1 no
  • 1 no

Stainless Steel Spring

  • 6 no
  • 6 no

Pb Bush

  • 4 no
  • 6 no

Lifting Hole Cover

  • 1 set
  • 1 set

Job Support Plate

  • 2 no
  • 2 no

Levelling Bolt

  • 4 no
  • 4 no

OPTIONAL ACCESSORIES

  • Vacuum Tester full Set:24,000
  • Depth Measurement Set(mechanical & digital):7,000
  • Tool Grinder:19500
  • Carbide Stem Above 7 mm:5000 p/pcs
  • Carbide Stem Below 7 mm:4500 p/pcs
  • Lapping Unit-Imported:32000
  • Tip Holder(60 mm-80 mm):14000

Technical specification

BHARAT AUTO MACHINE TOOLS

VALVE SEAT CUTTING MACHINE

TECHNICAL RECORDS

MV 2 & 3

MV 2 & 6

Spindle

60 mm

65 mm

Maximum Spindle Travel

130 mm

150 mm

Maximum Spindle Slant

20 degree

30 degree

Distance From Table to Spindle

310 mm

410 mm

Minimum Seat Cutting Dia
